Control board

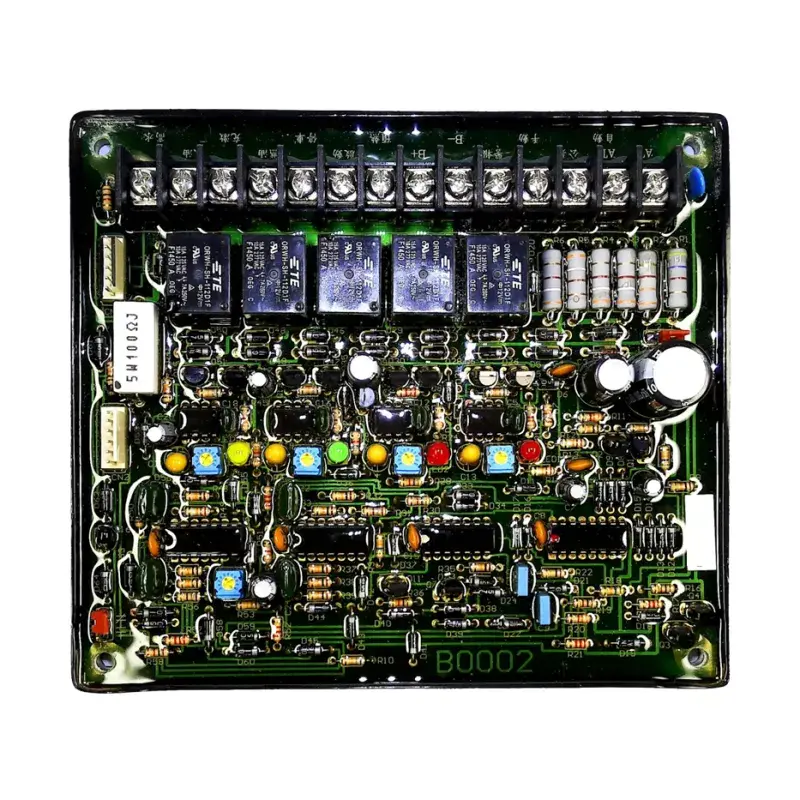

■Functions1. DC Start Control Panel DC12/24V2. Preheat / Delayed Start – adjustable up to 18 seconds3. Start – adjustable up to 18 seconds4. Stop – adjustable up to 18 seconds5. Alarm / Delayed Stop – adjustable up to 18 seconds6. Three Start Attempts Protection7. Automatic Starter Motor Protection8. Stop AVR Power Cut Protection9. Low Oil Pressure Protection10. High Water Temperature Protection11. Crankshaft Overrun Protection12. Power-Off Stop and Power-On Stop Capability13. Manual / Automatic Selection14. Low Oil Pressure Switch (Normally Closed)15. Surface Moisture-Resistant Treatment

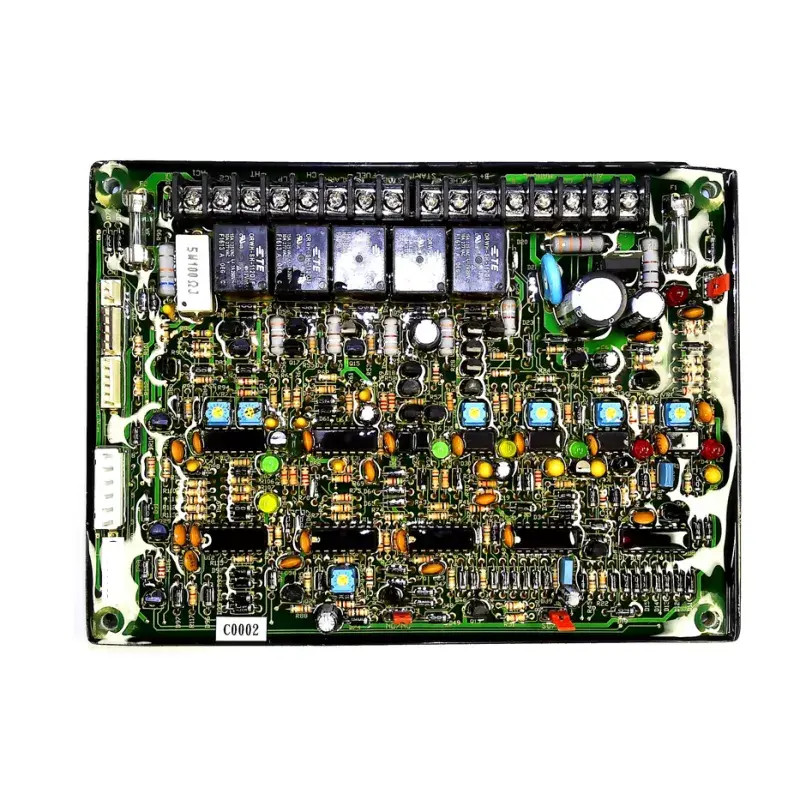

■Functions1. DC Start Control Panel DC12/24V2. Preheat / Delayed Start – adjustable up to 18 seconds3. Start – adjustable up to 18 seconds4. Stop – adjustable up to 18 seconds5. Alarm / Delayed Stop – adjustable up to 18 seconds6. Three Start Attempts Protection7. Automatic Starter Motor Protection8. Low Oil Pressure Protection9. High Water Temperature Protection10. Crankshaft Overrun Protection11. Power-Off Stop and Power-On Stop Capability12. Manual / Automatic Selection13. Low Oil Pressure Switch (Normally Closed / Normally Open)14. Surface Moisture-Resistant Treatment

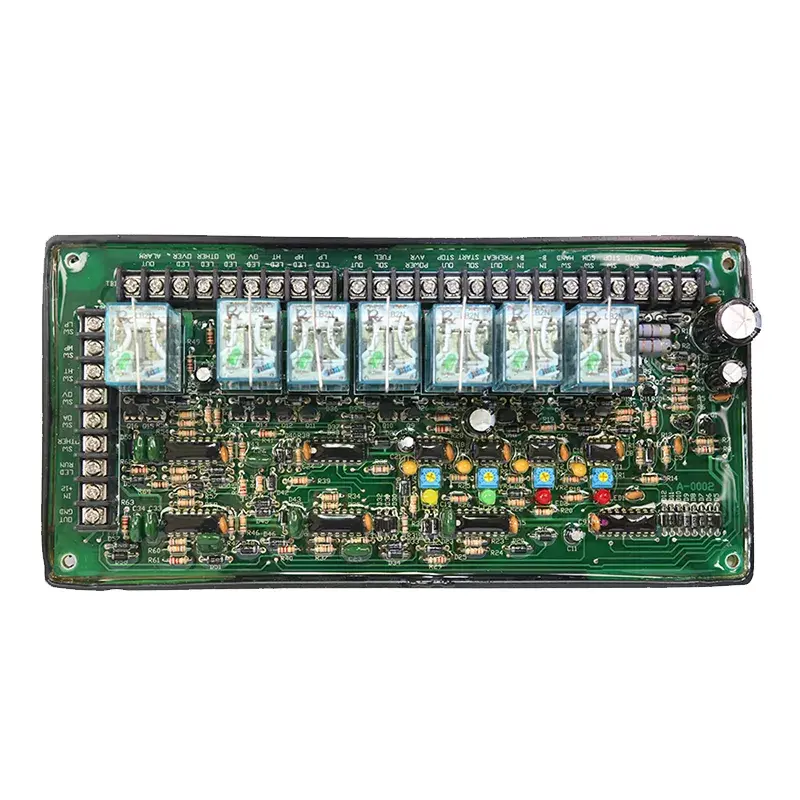

■Functions1. DC Start Control Panel DC12/24V2. Preheat / Delayed Start – adjustable up to 18 seconds3. Start – adjustable up to 18 seconds4. Stop – adjustable up to 18 seconds5. Alarm / Delayed Stop – adjustable up to 18 seconds6. Three Start Attempts Protection7. Automatic Starter Motor Protection8. Voltage / Frequency Drop Starter Motor Protection9. Low Oil Pressure Protection10. High Water Temperature Protection11. Overspeed Protection12. Crankshaft Overrun Protection13. Power-Off Stop and Power-On Stop Capability14. Manual / Automatic Selection15. Low Oil Pressure Switch (Normally Closed / Normally Open)16. Surface Moisture-Resistant Treatment

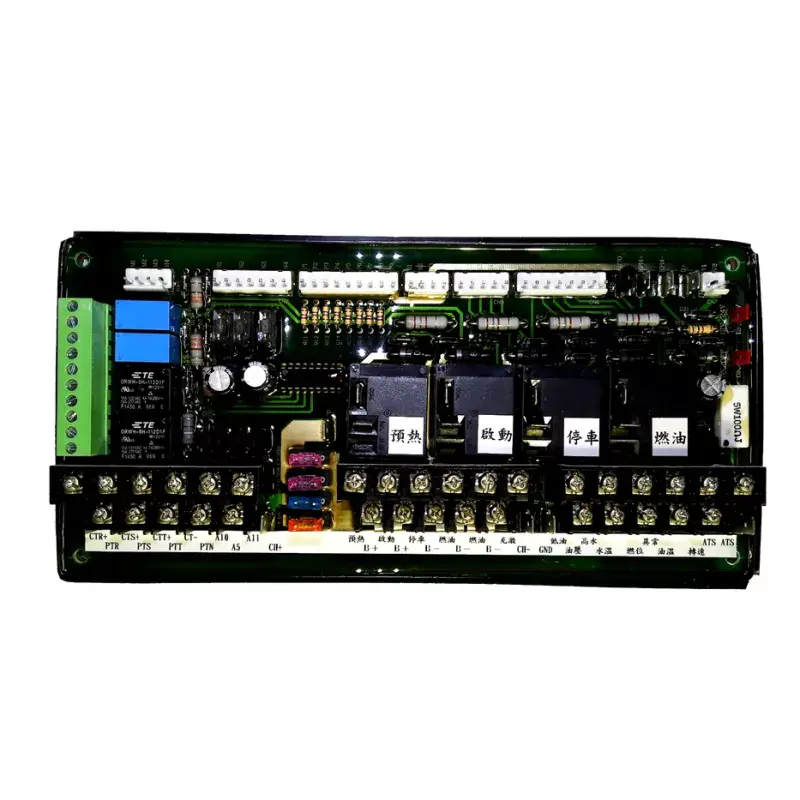

■Functions (Controller Auxiliary Terminal Board)1. Four High-Current Relay Outputs2. Four Low-Current Relay Outputs3. Signal Terminal Connectors

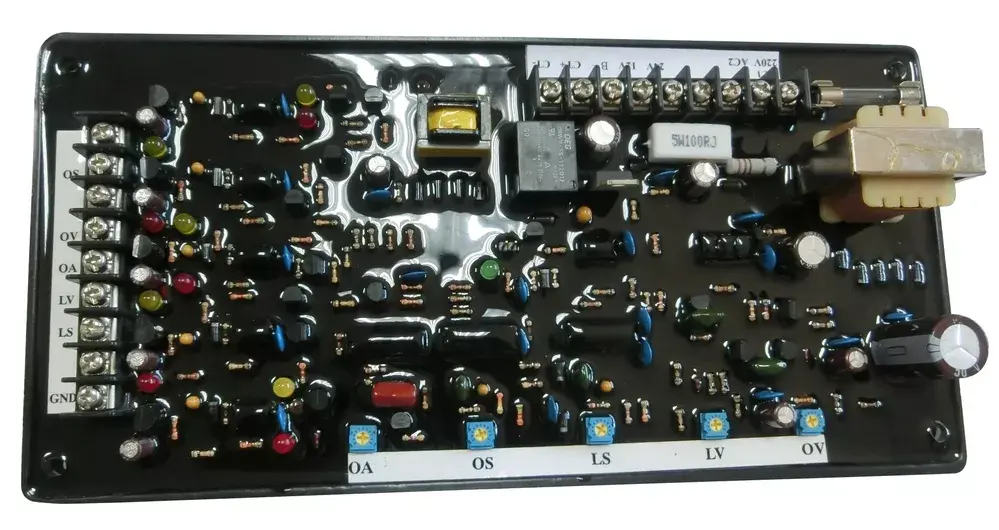

■Functions1. AC Sensing Control Board DC12/24V2. Overspeed Detection (adjustable setting)3. Overvoltage Detection (adjustable setting)4. Overcurrent Detection (adjustable setting)5. Undervoltage Detection (adjustable protection)6. Underfrequency Detection (adjustable setting)7. Surface Moisture-Resistant Treatment8. Accurate Signal Acquisition9. Stable Detection and Control, connected with A0002 Board10. Can be used for AC Power Function Protection

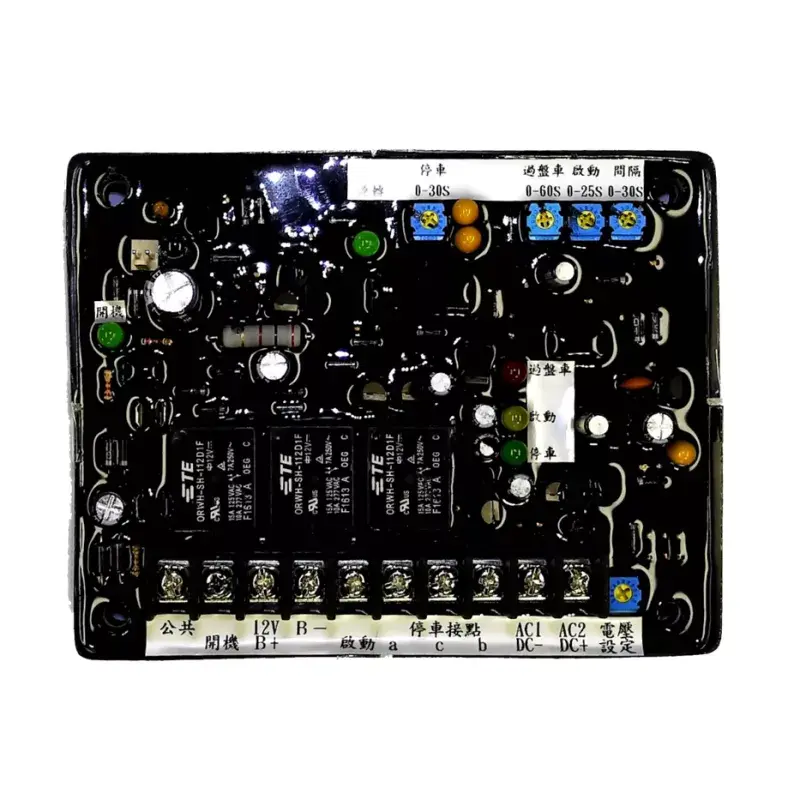

■Functions1. Protection Board (VP001)2. Stop – adjustable 0-30 seconds3. Crankshaft Overrun – adjustable 0-60 seconds4. Start – adjustable 0-25 seconds5. Interval – adjustable 0-30 seconds6. Voltage Setting 8-30 V7. Surface Moisture-Resistant Treatment8. Designed for Gasoline Engines■【Feature: The system consumes no power when not operating】

■Functions1. Protection Board (VP001)2. Stop – adjustable 0-30 seconds3. Crankshaft Overrun – adjustable 0-60 seconds4. Start – adjustable 0-25 seconds5. Interval – adjustable 0-30 seconds6. Voltage Setting 8-30 V7. Surface Moisture-Resistant Treatment8. For Gasoline Engines Only■【Feature: The system consumes no power when not operating】

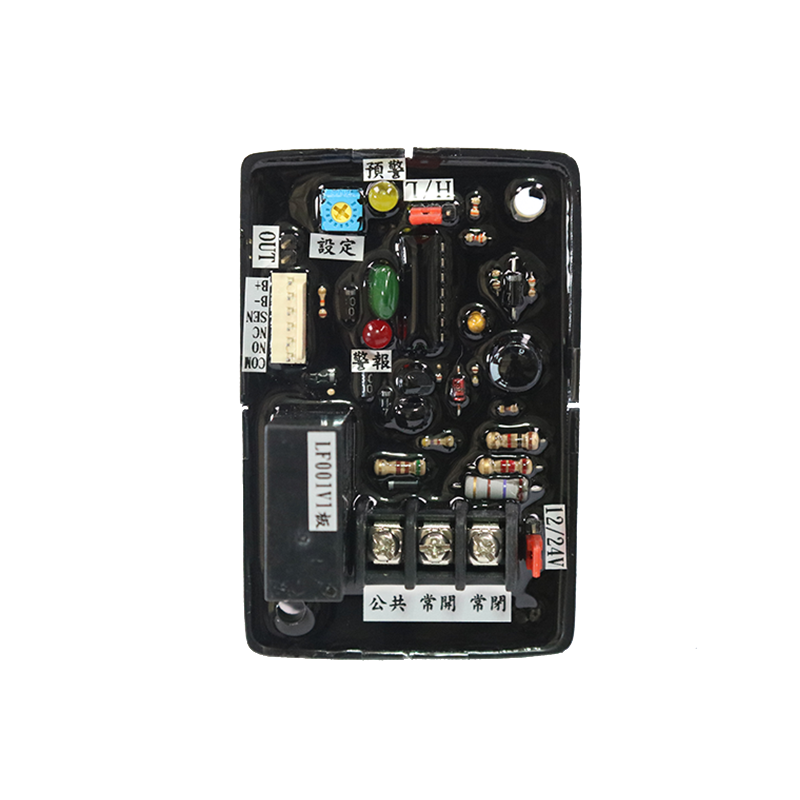

■Functions1. Low Battery Voltage Protection Board2. Low Battery Voltage Setting3. 12/24V Selection4. Surface Moisture-Resistant Treatment
